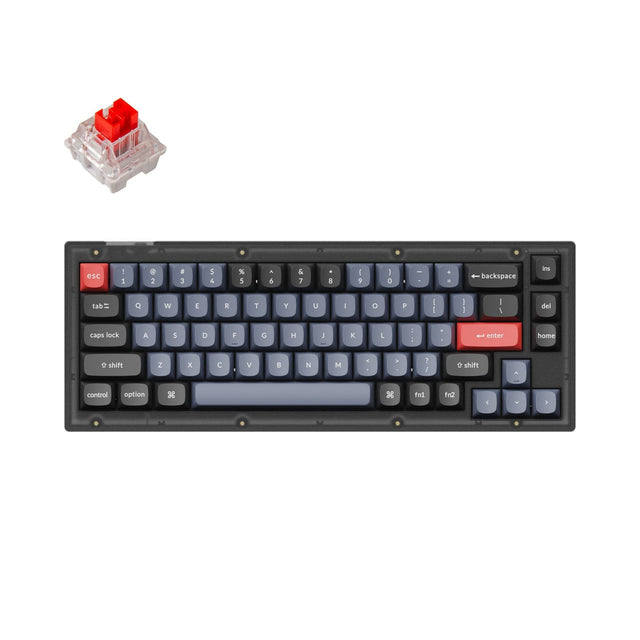

Keychron V2 QMK Custom Mechanical Keyboard (US ANSI Layout)
Keychron V2 QMK Custom Mechanical Keyboard (US ANSI Layout) - Fully Assembled / Frosted Black (Translucent) / Keychron K Pro Red is backordered and will ship as soon as it is back in stock.
Couldn't load pickup availability
- ABS plastic housing
- The keyboard PCB, screw-in stabs, and the steel plate
- Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
- Keychron K Pro switches
The barebone version does not include the keycaps and switches.
No discount codes can be used for V2.
Please drop your email on "Notify Me When Available" if the product model is out of stock.
Keychron V2 QMK Custom Mechanical Keyboard (US ANSI Layout)
Keychron V2
The V2 has a 65% ultra-compact layout with QMK/VIA support, which can offer you endless possibilities of customization and meet your needs in different situations. With double-shot PBT keycaps, an acoustic silicone pad, and pre-lubed switches, it will ensure you the best typing experience.
Frosted Black Version (Translucent）
Carbon Black Version (Non-transparent）
Choose the keycaps, switches and more accessories for your V2
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.
Programmable Knob
Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the V2's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile Double-shot PBT Keycaps
These double-shot PBT keycaps have a similar height to the OEM profile and has an SA-like shape, and we named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V2 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Program V2 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, and more.
Get the V2 keymap working on VIA
To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V2 keymap working on VIA.
Since the VIA code for the V2 is still awaiting approval from Github, it is not yet automatically recognized and you will need to manually download and import the V2 keymap.
V2 Knob Version Keymap JSON Files
V2 Non-Knob Version Keymap JSON Files
Hot-swappable.
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Keychron K Pro Switch
By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V2 also supports third-party screw-in PCB stabilizers.
Looking for ISO Layout?
The V2 ISO collection comes with fully assembled keyboards with 🇬🇧UK, 🇩🇪German, 🇩🇰🇫🇮🇮🇸🇳🇴🇸🇪Nordic, 🇨🇭Swiss, 🇫🇷French, and 🇪🇸 Spanish layout.
What's in the box?
Specs
| Width | 123.25 mm |
|---|---|
| Length | 329.9 mm |
| Front Height | 20.23 mm (without keycaps) |
| Back Height | 26.75 mm (without keycaps) |
| Feet Height | 2.4 mm |
| Angle | 3.5° / 8.5° / 11° |
| Weight | 855g ± 10g (Fully assembled weight) |
| Body Material | Solid ABS Plastic |
| Plate | Steel |
| Polling Rate | 1000Hz |
| Mount Style | Tray Mount Design |
| Keycaps (Fully Assembled Version) | Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape) |
|---|---|
| Switches | Keychron K Pro (Fully assembled version) |
| Backlight | South-facing RGB LED |
| Switch Support | Hot-swappable (5 pin & 3 pin) |
| Stabs | Screw-in PCB stabs |
| Connectivity | Type-C cable |
| Cable | Type-C cable + Type-A to Type-C adapter |
| MCU | Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash) |
| Operating Environment | -10℃ to 50℃ |
Learn more about the Keychron V2 such as the V2 shortcuts, assembling the V2, factory reset, and more in the FAQ section.
