ISO Layout Versions

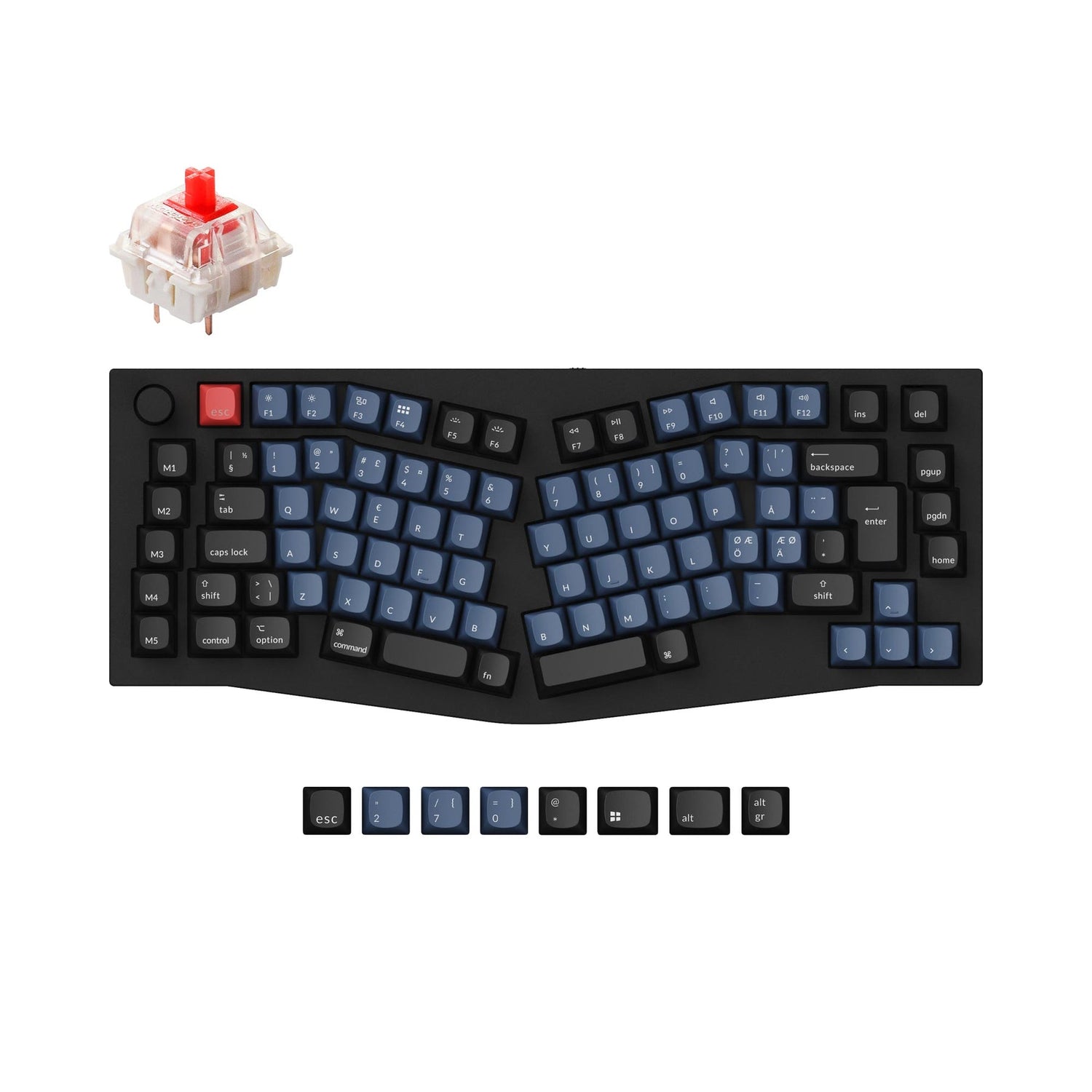

Keychron Q10 is a 75% Alice layout all-metal mechanical keyboard. With its all-metal CNC machined body, a full-size layout, double-gasket design, QMK/VIA support, and a left knob, the Q10 meets all your practical needs and gives you a high-end typing experience.
Choose the keycaps, switches and more accessories for your Q10 ISO Layout Keyboard
Q10 ISO Layout Version
The Keychron Q10 QMK custom mechanical keyboard ISO layout collection comes with UK, German, Nordic, Swiss, French, and Spanish layouts. Each Q10 ISO layout keyboard is also equipped with extra keycaps that fully satisfy your needs.
🇩🇪 DE-ISO Layout
🇬🇧 UK-ISO Layout
🇫🇷 FR-ISO Layout
🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout
🇨🇭 Swiss-ISO Layout
🇪🇸 ES-ISO Layout
With keycaps for macOS installed on Q10 DE-ISO layout.
With keycaps for Windows installed on Q10 DE-ISO layout.
A Refined Piece Of Metal Art
The entire metal body is crafted with 6063 aluminum that is processed through CNC machined, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make this solid metal piece of art that is the Q10.
All-Around Customizable Keyboard
To build a fully customizable keyboard, we designed every component easily assembled. Therefore, you can customize and adjust each component you want.
The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.
An Epic Core Inside The Keyboard
A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz out of the box, which makes latency non-existent for the competitive game.
OSA Profile ABS Backlight Shine-Through Keycaps
To further leverage your typing experience, the Q10 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS backlight shine-through keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.
Switch layouts between macOS & Windows
Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron Q10 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.
Designed to enhance your creative workflow, the premium rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.
You can easily customize the Q10's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.
Program Q10 with QMK & VIA
With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.
Get the Q10 keymap working on VIA
Since the VIA code for the Q10 is still awaiting approval from Github, it is not yet automatically recognized, you will need to manually download and import the Q10 keymap.
To get started, please follow the steps: Download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q10 keymap working on VIA.
Q10 Knob Version Keymap JSON
The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.
South-facing RGB LED Lights.
The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.
Pre-lubed Gateron G Pro Switch
The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q10 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.
All New Screw-In PCB Stabilizers
The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth. The Keychron Q10 also supports third-party screw-in PCB stabilizers.
What's in the box?
|Front Height||19.8 mm (without keycaps)|
|Back Height||33.4 mm (without keycaps)|
|Feet Height||2.7 mm|
|Weight||2460 g ± 10 g (the fully assembled weight)|
|Body Material||Full CNC machined aluminum|
|Layout||DE-ISO, UK-ISO, Swiss-ISO, Nordic-ISO, FR-ISO, and ES-ISO|
|Keycaps (Fully Assembled Version)||OSA Profile ABS backlight shine-through keycaps|
|Switches||Gateron G Pro (Fully assembled version)|
|Backlight||South-facing RGB LED|
|Switch Support||Hot-swappable (5 pin & 3 pin)|
|Stabs||Screw-in PCB stabs|
|Cable||Type-C cable + Type-A to Type-C adapter|
|MCU||Ultra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)|
|Operating Environment||-10℃ to 50℃|
Learn more about the Keychron Q10 such as the Q10 shortcuts, assembling the Q10, factory reset, and more in the FAQ section.
