Keychron Q0 Plus QMK Custom Number Pad

SKU: Q0L-B3
€99,00

Type
Color
Switch Option

The fully assembled version includes:
  • The number pad PCB, the case, and the steel plate
  • Double-shot OSA PBT keycaps
  • Gateron G Pro switches

The barebone version does not include the keycaps and switches.
No discount codes can be used for Q0 Plus.

Please drop your email on "Notify Me When Available" if the product model is out of stock.


Please note that the frame color may be slightly different from other Q series keyboards as the Q0 Plus was manufactured separately.

Keychron Q0 Plus Custom Mechanical Number Pad

Keychron Q0 Plus

The Q0 Plus is a custom number pad with a macro column and rotary encoder knob on the left side, serving either as a separate numeric keypad or a vast customizable array of keysets with QMK/VIA support. Added new double-gasket design, and with all-metal CNC machined body, screw-in stabs, hot-swappable feature, etc., it can best optimize your workflow and improve productivity!

Keychron Q0 Plus Custom Mechanical Number Pad
Keychron Q0 Plus Custom Mechanical Number Pad
Keychron Q0 Plus Custom Mechanical Number Pad
Features of Keychron Q0 Plus Custom Mechanical Number Pad

Choose the keycaps, switches and more accessories for your Q0 Plus.

Premium Metal Gadget

The mini metal body is crafted with 6063 aluminum that is processed through CNC machines, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the Q0 Plus a beautifully crafted gadget for your desk.

Keychron Q0 Plus Custom Mechanical Number Pad

Fully Customizable Number Pad

To build a fully customizable number pad, we designed every component easily assembled so you can customize and adjust each element as you wish.

Keychron Q0 Plus Custom Mechanical Number Pad
keychron_q0_plus_custom_mechanical_number_pad1__PID:e023ab77-41cd-45a8-b972-671af29fc9c7

Double Gasket Design

The Double Gasket Design is a new innovative structure in the industry. In addition to the gaskets on the plates, we added silicone pads between the top and bottom cases to significantly reduce the sound resonance between the metals and reduce the noise of the impacted metals. This design allows the keyboard to maintain the flexibility of the gasket structure and improves the overall typing sound.

launcher__PID:ee3d1338-5140-4586-933d-07740eae7fcd

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program with QMK & LauncherClick here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT of Keychron Q0 Plus Custom Mechanical Number Pad
All New Screw-In PCB Stabilizers of Keychron Q0 Plus Custom Mechanical Number Pad

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (0, +, enter) typing experience is now more stable and smoother. The Keychron Q0 Plus also supports third-party stabilizers, including Cherry or Durock.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the number pad backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the number pad.

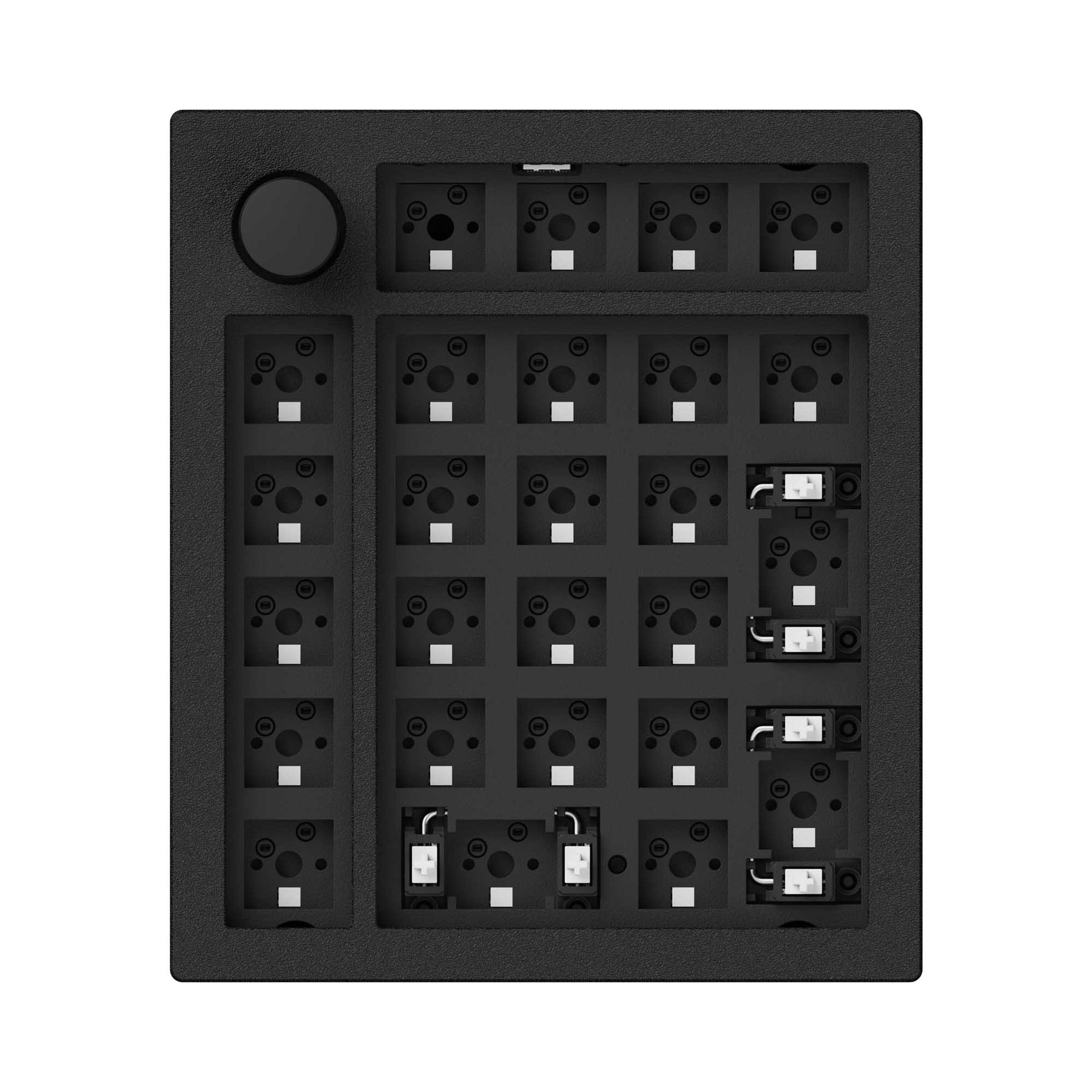

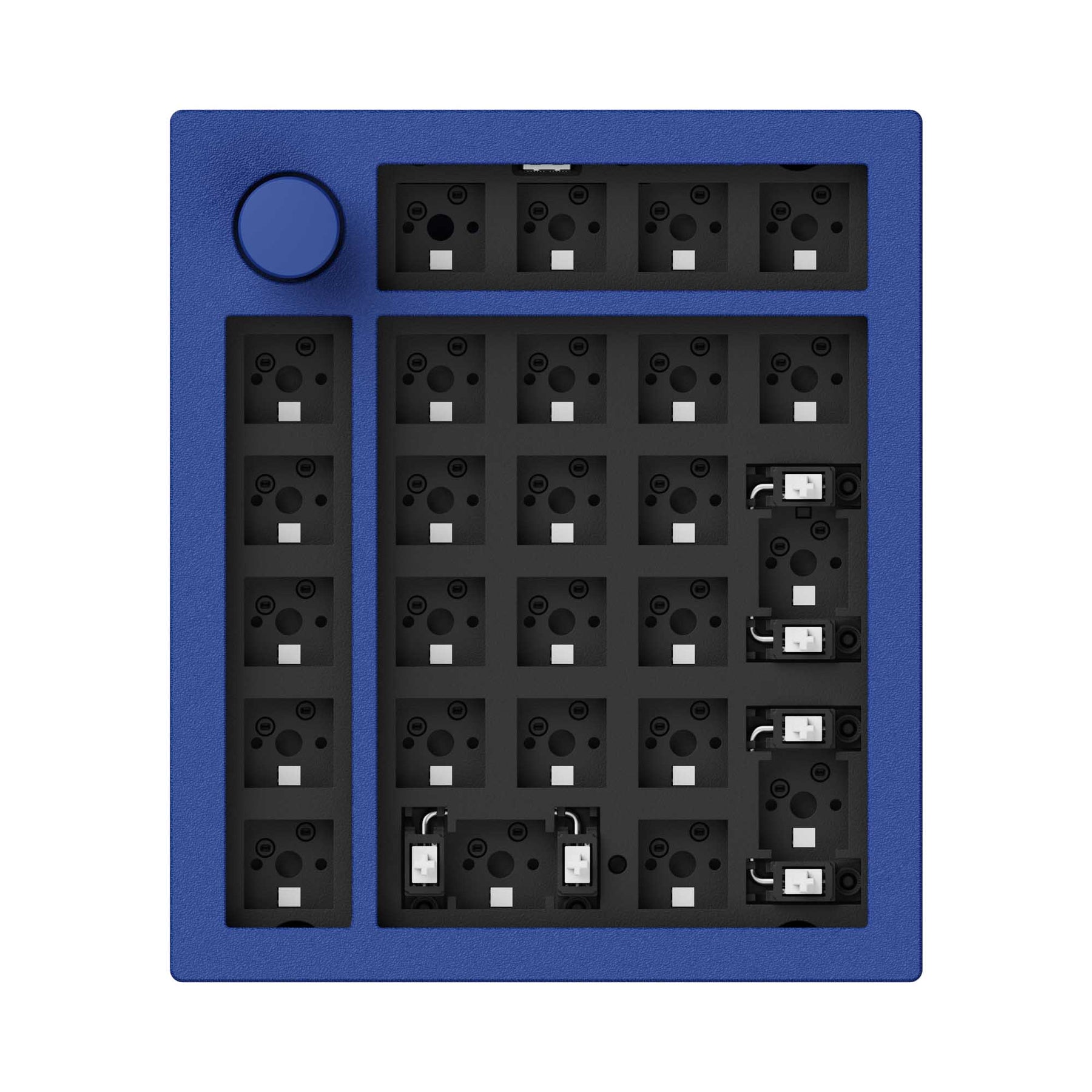

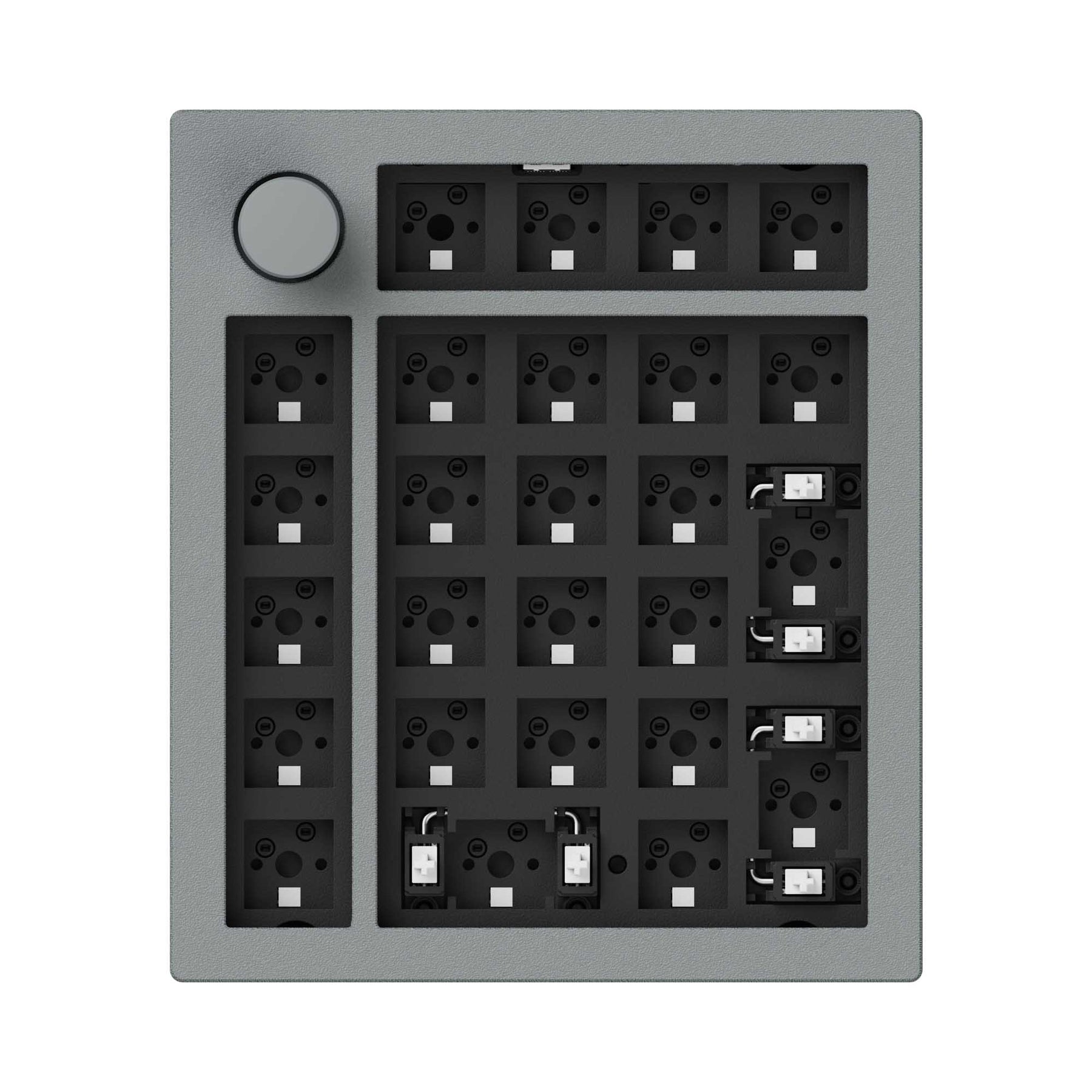

Barebone of Keychron Q0 Plus Custom Mechanical Number Pad

Pre-lubed Gateron G Pro Switch

The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q0 Plus version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.

Gateron G Pro Switch Features

What's in the box?

Keychron Q0 Plus Custom Mechanical Number Pad
Keychron Q0 Plus Custom Mechanical Number Pad

Specs

Width137 mm
Length118.2 mm
Front Height20.1 mm (without keycaps)
Back Height32.6 mm (without keycaps)
Feet Height1.9 mm
Angle5.26°
Weight586 g ± 10g (Fully Assembled Version)
Body MaterialFull CNC machined aluminum
PlateSteel
Polling Rate1000Hz
Mounting StyleGasket Mount
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron G Pro (Fully Assembled Version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power ARM Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Keychron Q0 Plus User Guide

Learn more about the Keychron Q0 Plus such as the Q0 Plus shortcuts, assembling the Q0 Plus, factory reset, and more in the FAQ section.

Customer Reviews

Based on 5 reviews
60%
(3)
40%
(2)
0%
(0)
0%
(0)
0%
(0)
M
Michael Hartkopf
Good Numpad

The only thing i am missing is wireless. Overall solid Numpad.

O
Oded Ben Ozer
Generally pleased with the build quality and functionality

The only issue I noticed is a slight flexing of the pcb when applying force on the keys(like when clicking on the rotating dial)

T
Tom Sonntag
Perfekt addition to a 75% keyboard

In got myself the q0 plus for an addition to my monsgeek M1. The q0 ist Made Out of solide Aluminium with a good (in my choice black) Eloxal surface.
The finish ist great.
The 9 hot Keys around the numpad are really usefull for multimedia buttons for example.
All in all i think of youn want an extern numpad the q0 plus is the way to go.

PS. Shipping to germany is directly from china

T
ToLiS

Super nice number pad to complement my keychron q3

V
Vedran Ridzak

solidly built, sturdy, nice design
