Keychron Q1 HE QMK Wireless Custom Keyboard ISO Layout Collection

SKU: Q1H-M1-DE
€213,00

Type
Layout Version
Switches

The Fully Assembled version includes:

  • The keyboard PCB, the case, and the aluminum plate.
  • Keycaps (included Mac & Windows keycaps).
  • Adjustable-actuation-point Gateron double-rail magnetic switches.

The Q1 HE is compatible exclusively with the Gateron Double-Rail Magnetic Switch. It does not support other magnetic switches such as the Gateron Magnetic Jade or Gateron KS-20 Magnetic switches.



          No discount codes can be used for the Q1 HE.

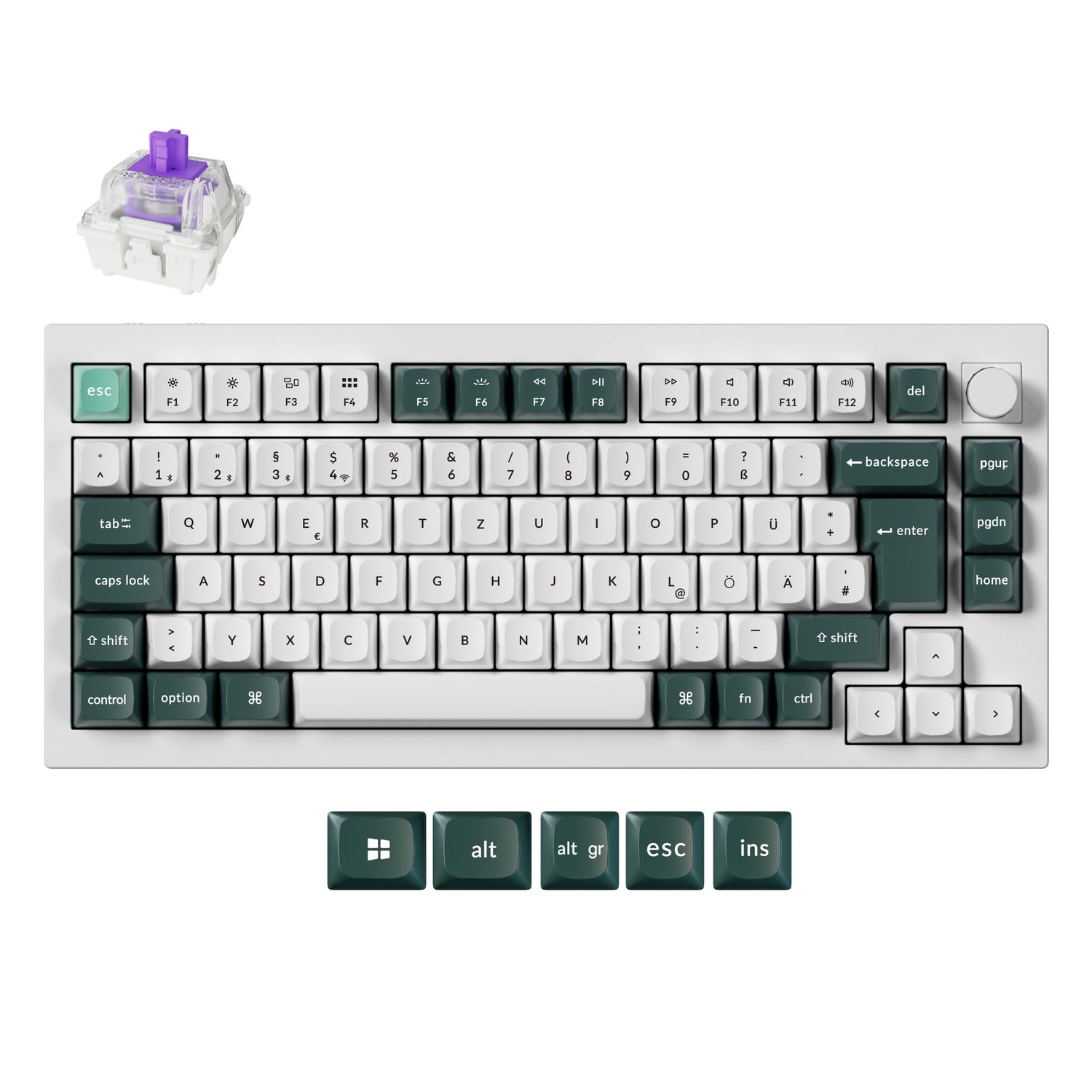

          ISO options: German, UK, Nordic, and Swiss layouts.

          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          Keychron Q1 HE

          ISO Layout Collection

          Meet the Q1 HE, the world's first 75% layout wireless QMK custom keyboard equipped with Hall Effect Gateron double-rail magnetic switches. These switches provide a distinct advantage due to their unique mechanism, offering faster feedback, dynamic rapid triggering, and adjustable actuation points, resulting in epic enhancements for the gaming experience tailored to your individual preferences.

          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          In addition to the Hall Effect magnetic switches, the Q1 HE introduces a 2.4G connection mode with an impressive 1000Hz polling rate, further ensuring a lightning-fast gaming experience. But that's not all; it also boasts premium features such as Bluetooth connectivity, a double-gasket design, an all-aluminum body, PBT keycaps, and more.

          Features of Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch
          Customize Your Q1 HE

          Choose the keycaps, switches, and more accessories for your Q1 HE.

          Q1 HE ISO Layout Versions

          🇬🇧 UK-ISO Layout

          keychron_q1_he_iso_uk_keycaps

          🇩🇪 German DE-ISO Layout

          keychron_q1_he_iso_german_keycaps

          🇨🇭Swiss-ISO Layout

          keychron_q1_he_iso_swiss_keycaps

          🇩🇰 🇫🇮 🇳🇴 🇸🇪 Nordic-ISO Layout

          keychron_q1_he_iso_nordic_keycaps

          Gateron Double-Rail Magnetic Hall Effect Switches

          With the first invented dual-rail structure, and the special pre-lubed, these switches ensure unparalleled stability and smoothness like never before.

          Gateron Double-Rail Magnetic Switch
          Gateron Double-Rail Magnetic Switch

          Installed with an optimal magnetic sensor with a sensitivity of only 0.1 mm, it offers more precious feedback. You can customize actuation points and assign multiple actions to a single key based on the travel depth you personalized, enhancing gameplay and providing a customized typing sensation.

          Add Gateron Double-Rail Magnetic Switch to cart
          Keychron Q1 HE Adjustable Actuation Point

          Adjustable Actuation Point

          Customize each key with ultra-precise 0.1 mm sensitivity and adjustable actuation points ranging from 0.2 to 3.8 mm. Setting the actuation point to 0.8 mm or 1.0 mm shortens the trigger and increases sensitivity. The reset occurs once you release the key, ensuring a faster response.

          Dynamic Rapid Trigger

          Activate or deactivate keys based on travel distance rather than fixed points. They activate precisely upon pressing and deactivate upon letting go, allowing for immediate repetition of keystrokes in mod-motion. This enables you to execute a chain of actions in quick succession during gameplay.

          Keychron Q1 HE Dynamic Rapid Triggering

          Multiple Actions, One Keystroke

          Assign four actions to a single key based on the depth of your press. For example, lightly press a key to walk forward in a game, and press deeper to run. Additionally, releasing the key also supports two-stage settings. This allows for smoother, personalized combinations that can give you an edge in competitive gaming.

          Keychron Q1 HE Four-In-One Action Keys
          Keychron Q1 HE Four-In-One Action Keys
          Program with QMK
          Program with Launcher

          Program with QMK & Launcher.

          The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. With the Keychron Launcher web app, you can effortlessly remap keys, adjust actuation points, set the magnetic switches, create personalized macro commands, shortcuts, and key combinations for each key.

          q1_he_iso_launcherClick here to use Keychron Launcher

          * Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

          2.4 GHz & Bluetooth Connection

          Experience peak gaming performance on the fly with the Q1 HE's 2.4 GHz wireless connection boasting a rapid 1000 Hz polling rate. For seamless multitasking across your computer, phone, and tablet, you can effortlessly connect the Q1 HE via Bluetooth 5.1 to three devices.

          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          A Piece Of Metal Art

          The entire metal body is crafted from 6063 aluminum, a material known for its increased durability, stability, and premium feel. Not only is this aluminum more resistant to physical damage, wear, and tear, but it is also environmentally friendly and recyclable. These qualities ensure both aesthetic appeal and a commitment to sustainability.

          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          Customize Every Part

          To build a fully customizable keyboard, we designed every component to be able to assemble easily. Therefore, you can customize and adjust each component as you wish.

          Structure of Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          Double-Gasket Design

          Silicone pads between the top and bottom cases reduce acoustic resonance, maintaining gasket flexibility and enhancing typing sound. The keyboard's bottom has an acoustic pad, improving sound quality with a slight impact on flexibility. Users seeking more flexibility can opt to remove the acoustic pad.

          Keychron Q1 HE Wireless QMK/VIA Custom Mechanical Keyboard
          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          An Epic Core Inside The Keyboard

          Engineered with a powerful chip (MCU) with 256K flash and QMK open-source firmware to provide more flexibility for developers. The polling rate is 1000 Hz out of the box in Type-C wired mode and 2.4 GHz mode, which greatly helps when competitively gaming.

          Suitable for All Devices

          Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Q1 HE comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch
          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          OSA Profile Double-shot PBT Keycaps

          It has a similar height to that of the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

          Hot-swappable

          Unlike mechanical switches, which depend on physical contact, Hall Effect magnetic switches use magnets to detect key presses. It is effortless to swap out the switch with compatible Hall Effect magnetic switches.
           *The Q1 HE is compatible with the Gateron double-rail magnetic switches sold on the Keychron website only.

          Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch

          Programmable Knob

          Designed to enhance your creative workflow, the aluminum rotary encoder allows you to easily customize your favorite keys and macros on the knob through the VIA software.

          Keychron Q65 Max Wireless QMK/VIA Custom Mechanical Keyboard

          You can easily customize the Q65 Max's knob to your desired key or macro commands such as: zooming in/out, adjusting screen brightness, brush size, volume, selecting video clips or photos, or backlight hue.

          Setting the macros for "zoom in/out"

          Using the knob as "zoom in/out"

          Program Q65 Max with QMK & VIA

          With full QMK and VIA support, you can easily program and remap each key on the keyboard. The open-source firmware means endless possibilities for keyboard layouts, shortcuts, backlight effects, even the knob, and more.

          Get the V1 keymap working on VIA

          To get started, please follow the steps: Download the appropriate kemap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, drag the JSON file into the “Design” tab on VIA to get the V1 keymap working on VIA.

           Since the VIA code for the V1 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and import the V1 keymap.

          Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your keyboard to download.

          V1 Knob Version Keymap JSON Files

          Get the Q1 HE keymap working on VIA

          Since the VIA code for the Q1 HE is still awaiting approval from Github, it is not yet automatically recognized. Please download the appropriate keymap JSON file below, open VIA, turn on "Show Design tab" on "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q1 HE keymap working on VIA.

          South-facing RGB LED Lights

          The south-facing RGB is designed to better illuminate the keyboard backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the user installs Cherry-profile alternative keycaps on their keyboard.

          Gateron Jupiter Switch

          Our exclusive Gateron Jupiter mechanical switch (for the Fully Assembled version only) comes with a 3-pin design, its pre-lubed with a reliable Gateron quality standard with up to 80 million keystrokes lifespan. While their unique LED diffuser design offers high RGB backlight transmittance and softer backlight effect.

          Gateron Jupiter Switch Features
          pcb screw in stabilizers

          All New Screw-In PCB Stabilizers

          The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less wobbly. The big keys’ (space bar, shift, enter, delete) typing experience is now more stable and smooth.

          What's in the box?

          Pack list of Keychron Q1 HE 75% Layout Wireless Custom ISO Keyboard with Gateron double-rail magnetic switch
          differences-among-the-q-he-q-max-q-pro-series-keyboards

          Specs

          Width145 mm
          Length327.5  mm
          Front Height22.6 mm  (without keycaps)
          Back Height35.8 mm (without keycaps)
          Feet Height2.4 mm
          Angle5.2°
          Weight1735 g ± 10 g (Fully Assembled Version)
          Body MaterialAluminum
          Plate MaterialAluminum
          Polling Rate1000 Hz (2.4 GHz and wired) / 90 Hz (Bluetooth mode)
          Connectivity2.4 GHz/Bluetooth/ Type-C wired
          Sensitivity0.1 mm
          N-Key Rollover (NKRO)
          Yes for both wireless and wired modes
          Rapid TriggerYes
          Adjustable Actuation Points0.2 - 3.8 mm
          Dynamic Keystrokes4-in-1 action keys
          KeycapOSA Double-shot keycaps, not shine-through
          MCU ARM Cortex-M4 32-bit STM32F402RC (256KB Flash)
          Backlight South-facing RGB LED
          Switch Gateron double-rail magnetic switch
          Hot-swappable Support Yes, compatible with Gateron double-rail magnetic switch only.
          StabilizerScrew-in PCB stabilizer
          Cable Type-C cable + Type-A to Type-C adapter
          Connectivity 2.4 GHz / Bluetooth / Type-C wired
          Bluetooth Version5.1
          Bluetooth Device NameKeychron Q1 HE
          Battery4000 mAh Rechargeable li-polymer battery
          Operating Environment-10 to 50℃
          Wireless Working Time (Backlit off)  Up to 100 hours
          Keychron Q1 HE User Guide

          Learn more about the Keychron Q1 HE such as the shortcuts, HE mode, factory reset, and more.

          Keychron Q1 HE User Guide

          Learn more about the Keychron Q1 HE such as the Q1 HE shortcuts, assembling the Q1 HE, factory reset, and more in the FAQ section.
