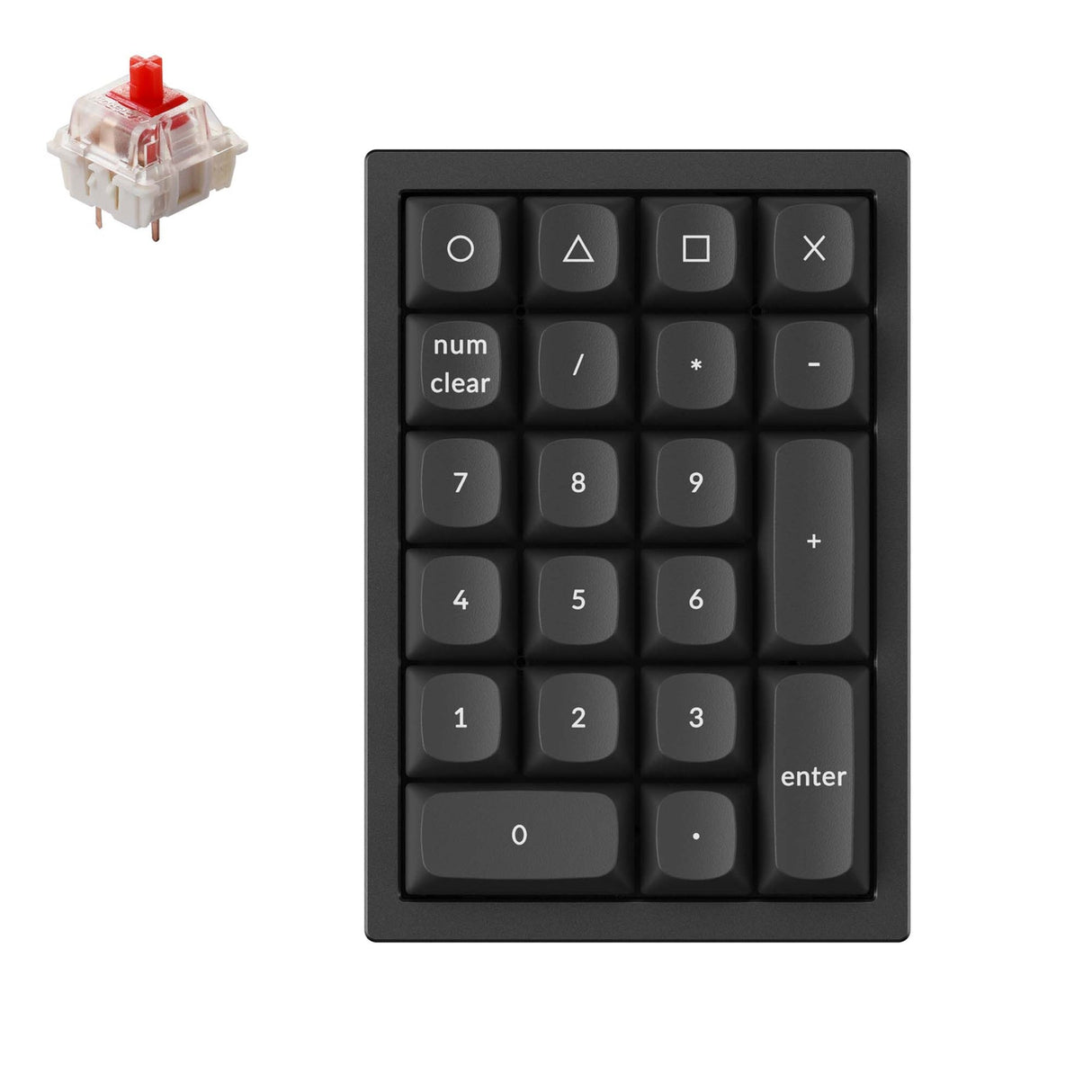

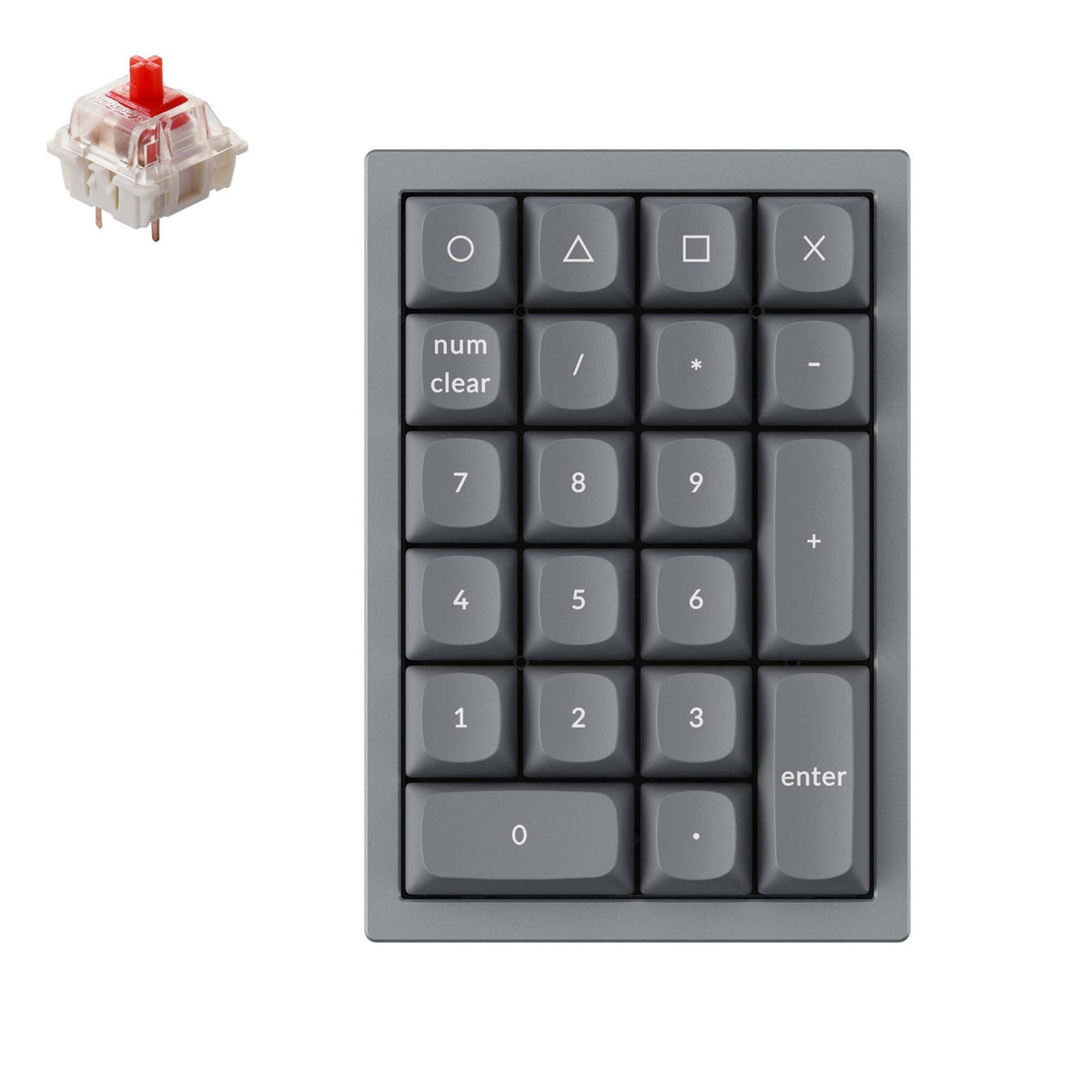

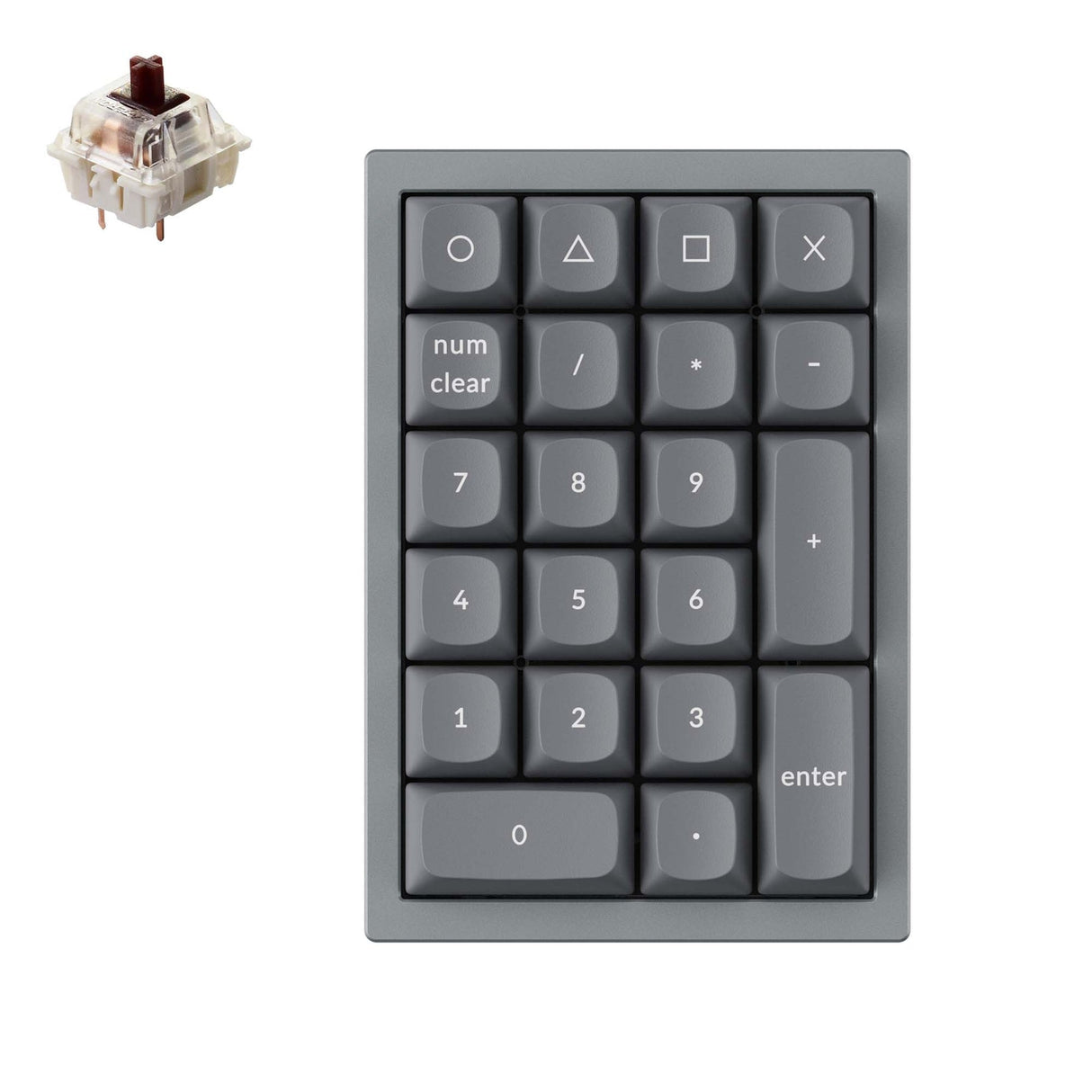

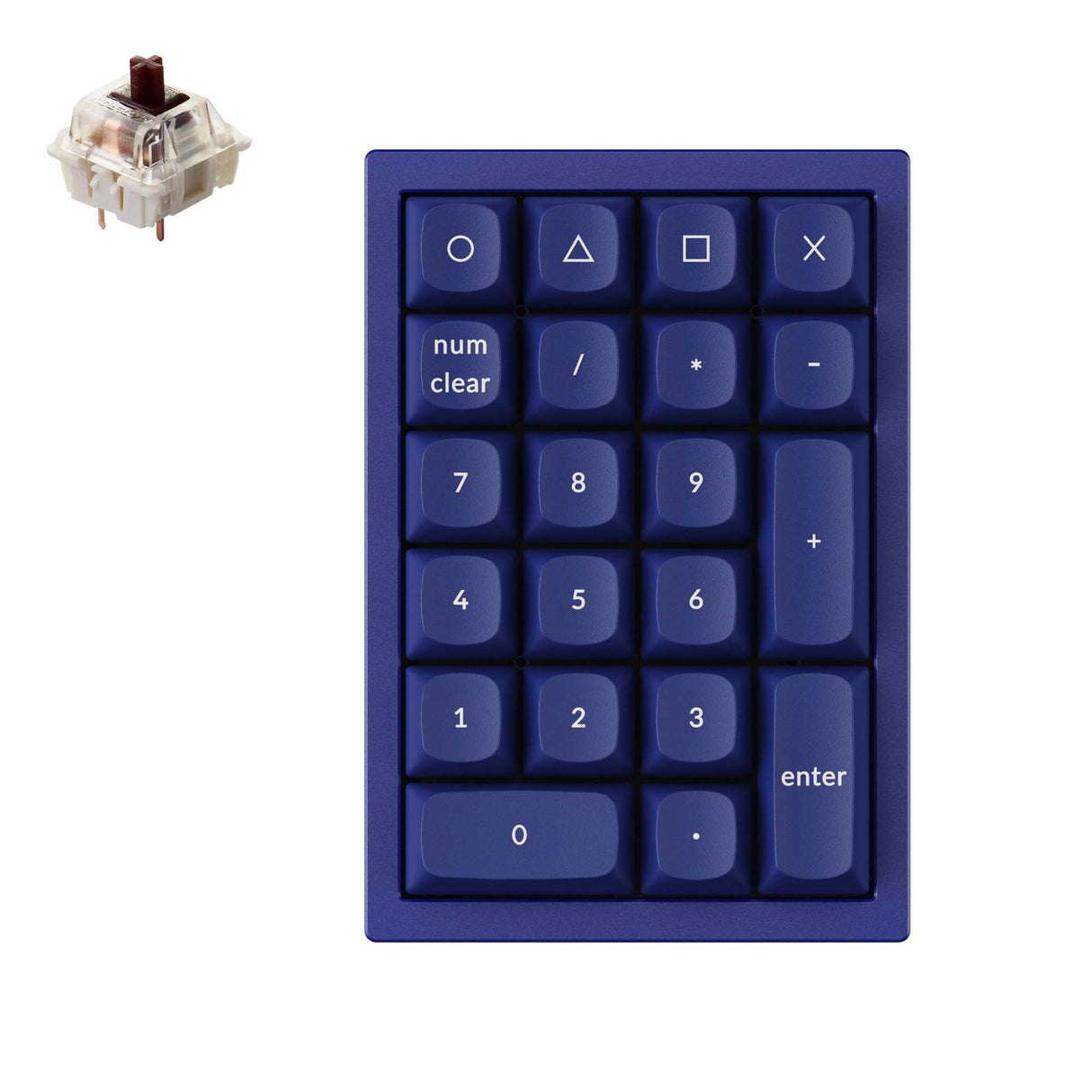

Keychron Q0 QMK Benutzerdefinierter Nummernblock

SKU: Q0-C1


Die komplett montierte Version beinhaltet:
  • Die Platine des Nummernblocks, das Gehäuse und die Stahlplatte
  • Double-Shot OSA PBT-Tastenkappen
  • Gateron G Pro-Schalter

Die Barebone-Version enthält keine Tastenkappen und Schalter.
Für Q0 können keine Rabattcodes verwendet werden.

Bitte senden Sie Ihre E-Mail an „Benachrichtigen Sie mich, wenn verfügbar“, wenn das Produktmodell nicht vorrätig ist.

Please note that the frame color may be slightly different from other Q series keyboards as the Q0 was manufactured separately.

Keychron Q0 Custom Mechanical number pad

Keychron Q0

The Q0 is a mini custom number pad, it’s designed as a number pad or it can act as an extra key set of macros. With its all-metal CNC machined body, screw-in stabs, hot-swappable function, RGB LEDs, pre-lubed switches, and QMK/VIA support, the Q0 is the best customizable number pad for you.

Keychron Q0 Custom Mechanical number pad
Keychron Q0 Custom Mechanical number pad
Features of Keychron Q0 Custom Mechanical number pad
Customize Your Q0

Choose the keycaps, switches and more accessories for your Q0

Premium Metal Gadget

The mini metal body is crafted with 6063 aluminum that is processed through CNC machines, polished, anodized, sandblasted, and undergoes 24 more manufacturing stages to make the Q0 a beautifully crafted gadget for your desk.

Keychron Q0 Custom Mechanical number pad

Fully Customizable Number Pad

To build a fully customizable number pad, we designed every component easily assembled so you can customize and adjust each element as you wish.

Keychron Q0 Custom Mechanical number pad
Drop element here!

More Than a Number Pad Program the Q0 with QMK & VIA

With full QMK and VIA support, you can program and remap each key on this number pad with ease. The open-source firmware means endless possibilities for layouts, shortcuts, backlight effects, and more.

QMK VIA Screen of Keychron Q0 Custom Mechanical number pad

A brand new ultra-low-power Arm MCU structure that is powerful and armed with 128K Flash to provide developers with more flexibility.

Get the Q0 keymap working on VIA

To get started, please follow the steps: Download the appropriate keymap JSON file below, open VIA, turn on the "Show Design tab" on the "Settings" tab, and drag the JSON file into the “Design” tab on VIA to get the Q0 keymap working on VIA. Since the VIA code for the Q0 is still awaiting approval from Github, it is not yet automatically recognized, so you will need to manually download and enter the Q0 keymap.

Note: Only the right JSON file can be input, please find the right version keymap JSON file which matches your number pad to download.

Keychron Q0 Keymap JSON File

OSA Profile Double-shot PBT Keycaps

For the new double-shot PBT keycaps, we built a new profile. It has a similar height to the OEM profile and has an SA-like shape. We named it the OSA (OEM spherical angled) keycap. The PBT keycaps will provide excellent oil resistance, enhance the type feel, and prevent the legends from fading out.

OSA Profile Double-shot PBT of Keychron Q0 Custom Mechanical number pad
All New Screw-In PCB Stabilizers of Keychron Q0 Custom Mechanical number pad

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (0, +, enter) typing experience is now more stable and smoother. The Keychron Q0 also supports third-party stabilizers, including Cherry or Durock.


The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3 pin and 5 pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the number pad backlight from the typist’s angle with the premium non-shine-through PBT keycaps installed. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the number pad.

Note: The Q0's top case has sharper corners to make it much more compatible with third-party keycaps.

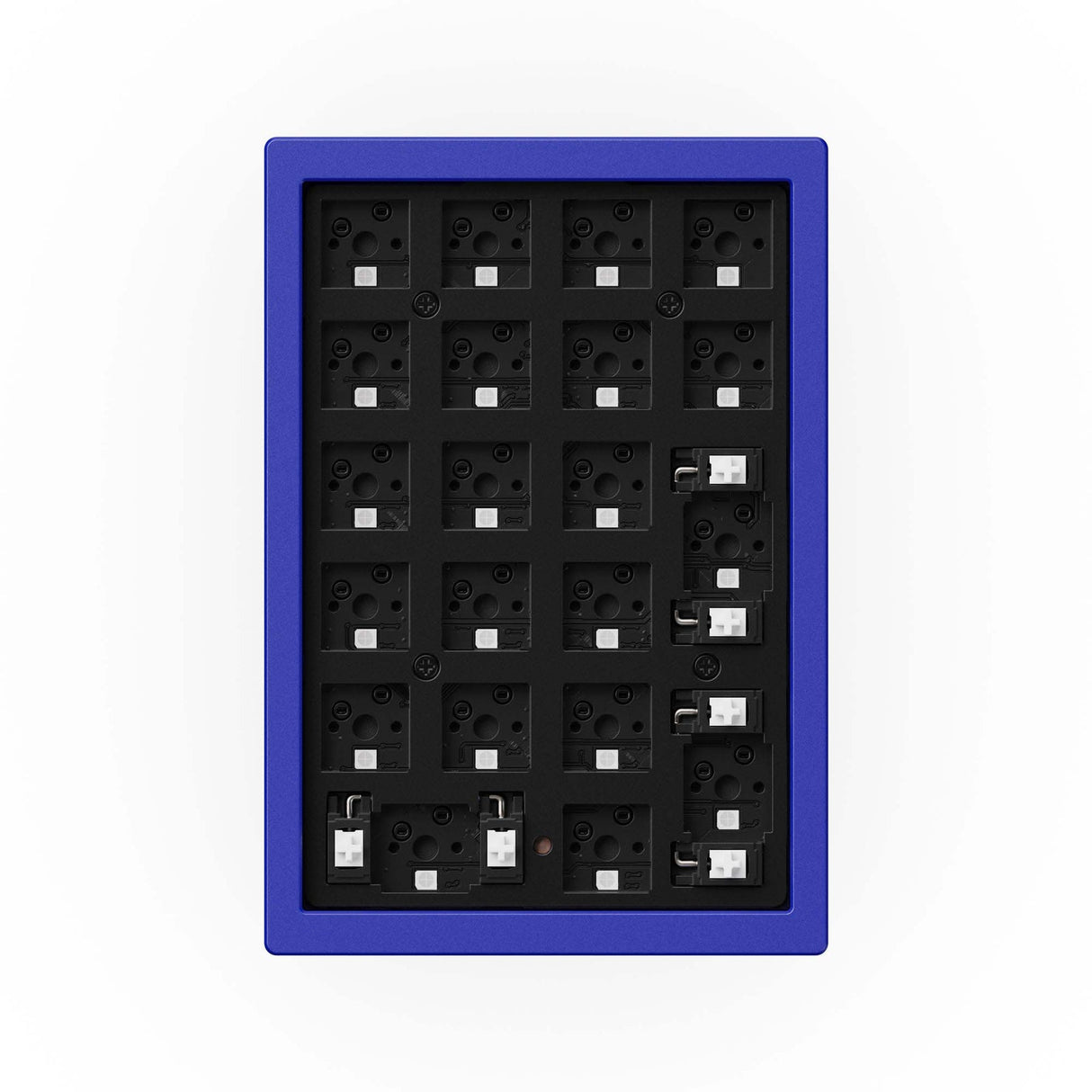

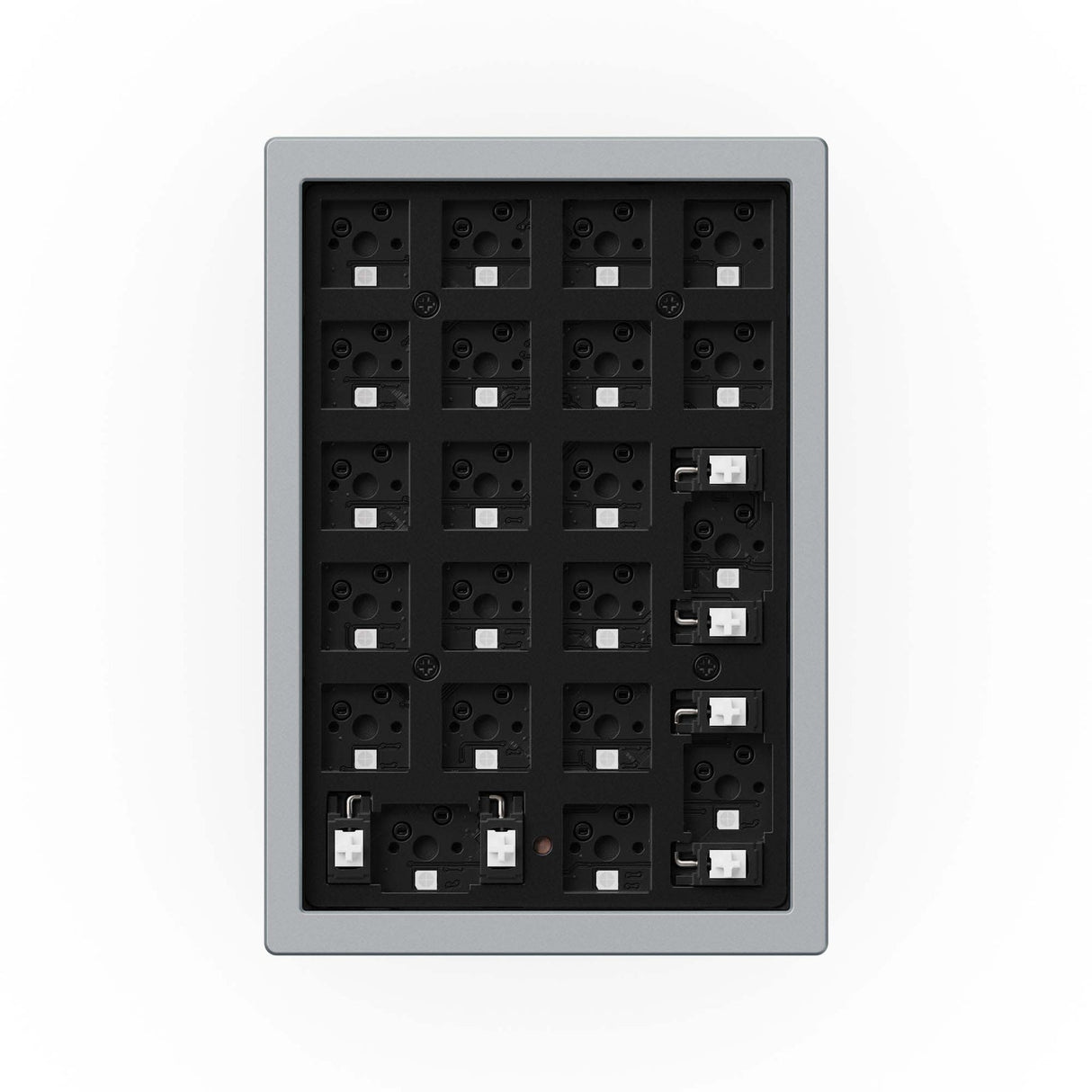

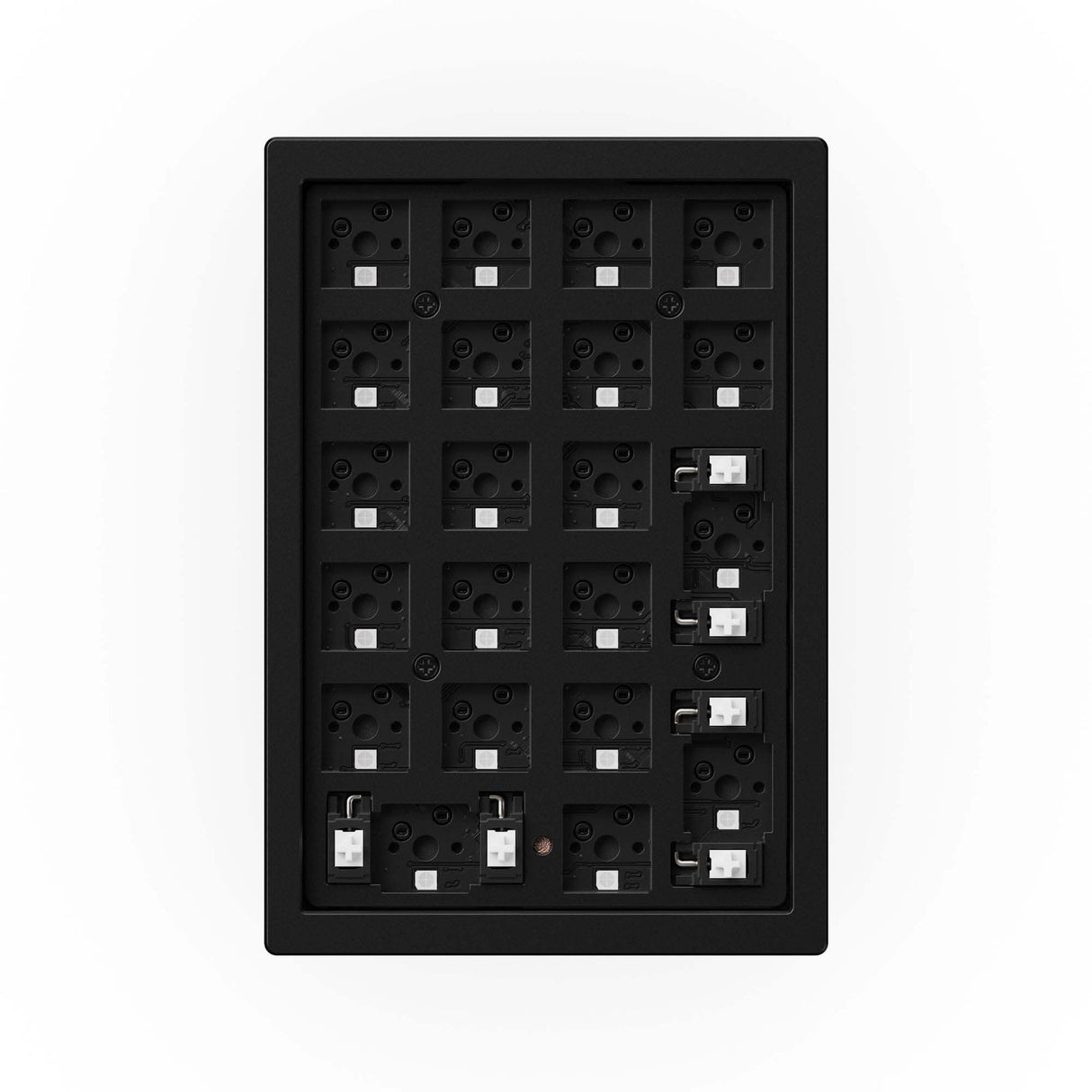

Barebone Keychron Q0 Custom Mechanical number pad

Pre-lubed Gateron G Pro Switch

The optimized molded switch with more precise positioning and less wobble will undoubtedly improve the feel at your fingertips. With the fully assembled Q0 version fitted with factory pre-lubricated Gateron G Pro switches, a smoother travel experience is guaranteed for you.

Gateron G Pro Switch Features

Typing Sound Test

What's in the box?

Keychron Q0 Custom Mechanical number pad
Keychron Q0 Custom Mechanical number pad


Width128.8 mm
Length88.8 mm
Front Height12.8 mm  (without keycaps)
Back Height29.3 mm (without keycaps)
Feet Height2.4 mm
Weight2200 g ± 10g (the fully assembled weight)
Body MaterialFull CNC machined aluminum
Polling Rate1000Hz
Mounting StyleTray Mount
Keycaps (Fully Assembled Version)Double-shot PBT keycaps, not shine-through, OSA Profile (OEM height, SA shape)
SwitchesGateron G Pro (fully assembled version)
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Drop element here!
Keychron Q0 User Guide

Learn more about the Keychron Q0 such as the Q0 shortcuts, assembling the Q0, factory reset, and more in the FAQ section.
