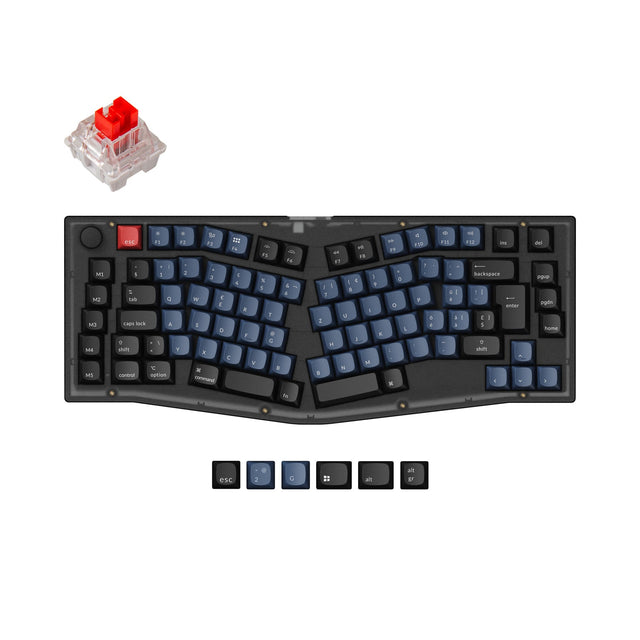

Keychron V10 (Alice Layout) QMK Custom Mechanical Keyboard ISO Layout Collection

SKU: V10-C1-SW
€103,00

Type
Layout Version
Switches

The fully assembled version includes:
  • ABS plastic housing
  • The keyboard PCB, screw-in stabs, and the steel plate
  • OSA Profile ABS shine-through PBT keycaps (including Mac & Windows keycaps)
  • Keychron K Pro switches

No discount codes can be used for V10.

Please drop your email on "Notify Me When Available" if the product model is out of stock.


Keychron V10
ISO Layout Collection

Keychron V10 comes in a unique 75% Alice layout, with extra macro keys to program and a left knob design. It is fully customizable with QMK/VIA support and configured with screw-in stabs, backlight shine-through keycaps, an acoustic pad, etc., ergonomic and comfortable to meet all your practical needs!

Keychron V10 QMK/VIA Custom Mechanical Keyboard ISO Layout
Feature of Keychron V10 QMK/VIA Custom Mechanical Keyboard ISO Layout
Customize Your V10

Choose the keycaps, switches and more accessories for your V10 ISO layout keyboard

Keychron V10 ISO Layout Versions

These versions include the Nordic, Swiss, German, UK, French, and Spanish layouts, all with extra keycaps suitable for Mac and Windows devices.

🇨🇭 Swiss-ISO Layout

Swiss-ISO Layout Keychron V10 QMK/VIA Custom Mechanical Keyboard

🇩🇰 🇫🇮 🇮🇸 🇳🇴 🇸🇪 Nordic-ISO Layout

Nordic-ISO Layout Keychron V10 QMK/VIA Custom Mechanical Keyboard

🇩🇪 German DE-ISO Layout

German DE-ISO Layout Keychron V10 QMK/VIA Custom Mechanical Keyboard

🇬🇧 UK-ISO Layout

UK-ISO Layout Keychron V10 QMK/VIA Custom Mechanical Keyboard

🇫🇷 French-ISO Layout

French-ISO Layout Keychron V10 QMK/VIA Custom Mechanical Keyboard

🇪🇸 Spanish-ISO Layout

Spanish ISO Layout Keychron V10 QMK/VIA Custom Mechanical Keyboard

All-Around Customizable Keyboard

To build a fully customizable keyboard, we designed every component to be easily assembled so you can customize and adjust any or every part the way you want.

Keychron V10 QMK/VIA Custom Mechanical Keyboard ISO Layout
v6isolayeredstructuremobile-1676617137185__PID:a3a41189-56d5-4cb3-abdb-30bc1e5db39d

Note: The screw heads are molded into the case, so they have a very strong grip and won’t fall out.

Keychron V10 QMK/VIA Custom Mechanical Keyboard ISO Layout

An Epic Core Inside The Keyboard

A powerful ultra-low-power ARM architecture MCU equipped with 128K Flash will provide more flexibility for developers. The polling rate is 1000 Hz right out of the box, which makes the latency hardly noticeable even in competitive games.

OSA Profile ABS Backlight Shine-Through Keycaps

To further leverage your typing experience, the V10 ISO version comes with our unique OSA profile (OEM profile with spherical angle) and ABS keycaps that aim to provide a more comfortable fingertip feel and a fantastic backlight shine-through effect.

Keychron V10 QMK/VIA Custom Mechanical Keyboard ISO Layout

Switch Layouts Between macOS & Windows

Built with the Mac users’ experience in mind while still retaining compatibility for Windows devices, the Keychron V10 comes with a system toggle and an additional set of customized keycaps for both Windows and macOS systems. You can now save two different layouts on the keyboard, one for each system.

launcher__PID:ee3d1338-5140-4586-933d-07740eae7fcd

Program with QMK & Launcher.

The open-source QMK firmware means endless possibilities for key remapping, macros, shortcuts, and more. Now you can easily customize each key with the Keychron Launcher web app.

Program with QMK & LauncherClick here to use Keychron Launcher

* Please use the latest version of Chrome / Opera / Edge browser to open the Launcher and connect the keyboard to your device via wired mode.

Hot-swappable.

The hot-swappable sockets are mounted on the PCB, so you can install or change the switches without soldering. The PCB supports both 3-pin and 5-pin MX mechanical switches.

South-facing RGB LED Lights.

The south-facing RGB LED is designed to better illuminate the keyboard backlight from the typist’s angle. The south-facing RGB is also free from interference when the users install OEM or Cherry-profile alternative keycaps on the keyboard.

Barebone ISO Layout Keychron V10 Custom Mechanical Keyboard

Pre-lubed Keychron K Pro Switch

By optimizing the switch mold, the K Pro switch wobbles less than a standard mechanical switch and feels smoother on each hit. Plus, the factory pre-lubed process on all the K Pro switches (exclude the clicky ones), no doubt this will ensure the best smoothness at your fingertips when typing.

Keychron K Pro Switch Features
All New Screw-In PCB Stabilizers

All New Screw-In PCB Stabilizers

The screw-in design increases stability and makes it easier for changes and upgrades. Precise craftsmanship makes the stabilizers more stable and less shaky. The big keys’ (space bar, shift, enter, backspace) typing experience is now more stable and smooth. The Keychron V10 also supports third-party screw-in PCB stabilizers.

What's in the box?

Package list of Keychron V10 QMK/VIA Custom Mechanical Keyboard ISO Layout

Specs

Width141.3  mm
Length386.7 mm
Front Height18.7 mm  (without keycaps)
Back Height27.2 mm (without keycaps)
Feet Height3 mm
Angle3.5° / 6.7° / 9.3°
Weight 1230±10 g (Fully Assembled Version)
Body MaterialABS Plastic
PlateSteel
Polling Rate1000Hz
Mount StyleTray Mount Design
Keycaps (Fully Assembled Version)OSA Profile ABS backlight shine-through keycaps
SwitchesKeychron K Pro
BacklightSouth-facing RGB LED
Switch SupportHot-swappable (5 pin & 3 pin)
StabsScrew-in PCB stabs
ConnectivityType-C cable
CableType-C cable + Type-A to Type-C adapter
MCUUltra-low-power Arm Cortex-M4 32-bit STM32L432 (128KB Flash)
Operating Environment-10℃ to 50℃
Keychron V10 User Guide

Learn more about the Keychron V10 such as the V10 shortcuts, assembling the V10, factory reset, and more in the FAQ section.
