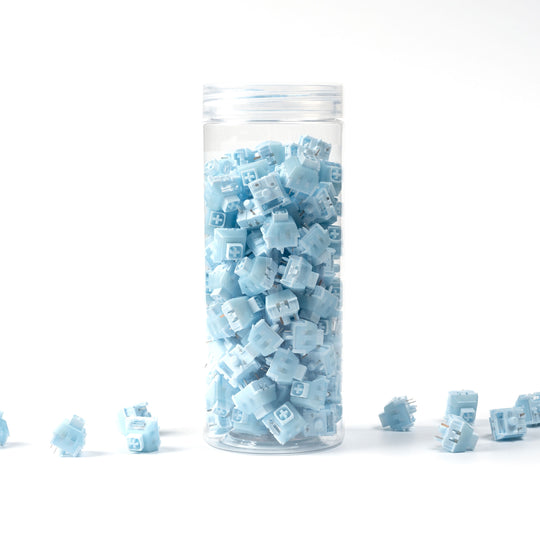

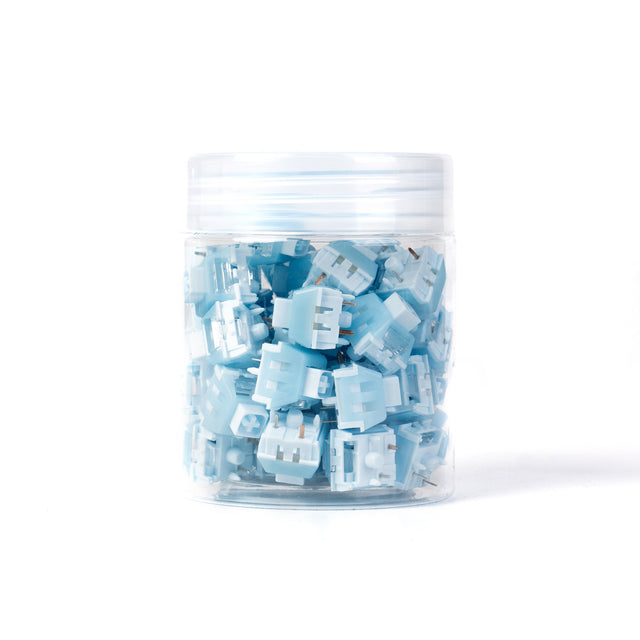

Kailh Box Winter Tastschalter
Kailh Box Winter Tastschalter - Schachtel Winter Tactile / 110 Schalter ist auf Lager und wird versandt, sobald es wieder verfügbar ist
Verfügbarkeit für Abholungen konnte nicht geladen werden
Premium Advanced Tactile Feeling
Kailh Box Winter Switch is a premium advanced tactile switch with 38±10 gf operation force and 55±10 gf tactile force. It delivers crisp tactile feedback and smooth return. This switch adopts a light blue color scheme as if standing in the winter sun and touching a soft snowflake, comfortable and stable. Its upper cover is made of PC material, and the stem and base are made of self-lubricated POM material, which makes the switch body smoother.
Excellent Backlight Effect. Perfect For RGB Keyboards
This switch adopts a transparent light guide column to enhance the light transmittance of the switch, so as to obtain a good backlight effect, which is perfect for RGB keyboards
Extension Spring. Quick Return
By engineered with an extended 20 mm long spring, it provides a smooth typing feeling and a quick and strong rebound.
Dustproof & Waterproof “Box” Build
This switch’s unique inner box design is dustproof and waterproof to help increase the switch’s lifespan and longevity.
5-Pin Stable Scheme
The 5-Pin structure has two more support feet on both sides than the 3-Pin switch, which makes their grip firmer with the keyboard plate and enables stable typing with less wobbling.
Product Structure
Specs
| Type | Tactile |
|---|---|
| Operation Force | 38±10 gf |
| Pre-Travel | 2.0±0.4 mm |
| Return Force | ≥13 gf |
| Tactile Force | 55±10 gf |
| Total Travel | 3.6±0.3 mm |
| Sound Level | Medium |
| Operation Life | Up to 80M cycles |
| Suitable For | Midway gaming/office |
| Product Name | Box Winter Switch |
|---|---|
| Stem | POM |
| Top Housing | PC |
| Bottom Housing | POM |
| Contact | Composite gold |
| Spring | Spring steel |
| Protecting Cover | Nylon |
| Slider | POM |
| Pins | 5-Pin |
| Factory Pre-lubed | Yes |
| SMD LED Support | Yes |
Compatible Keyboard:
Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
