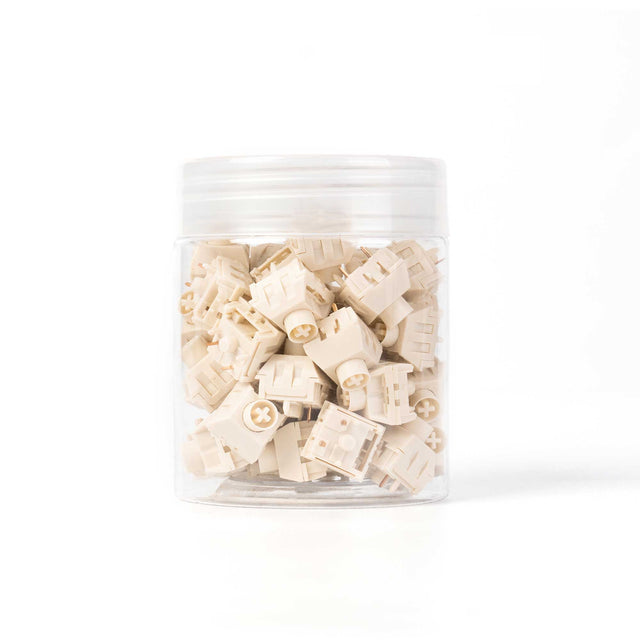

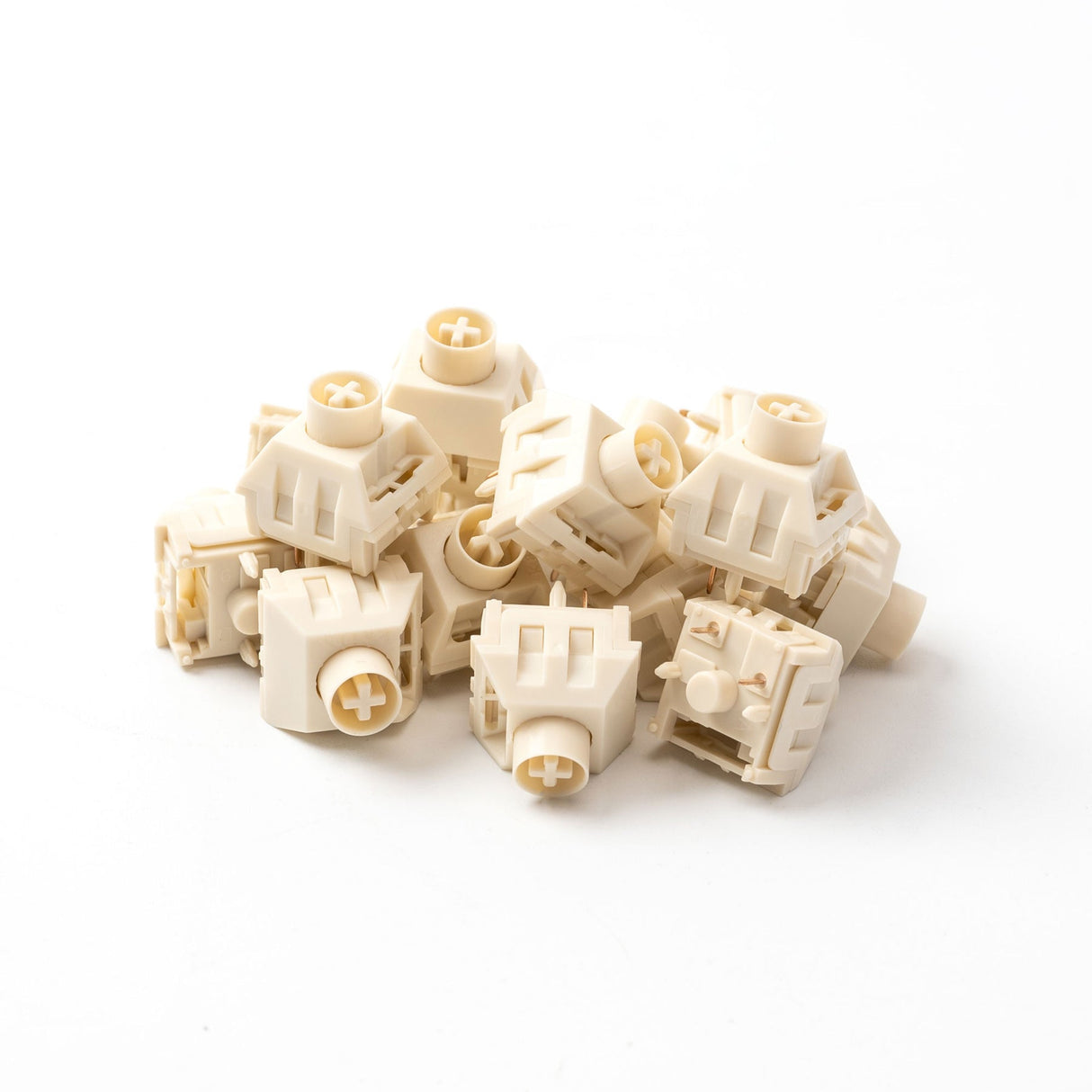

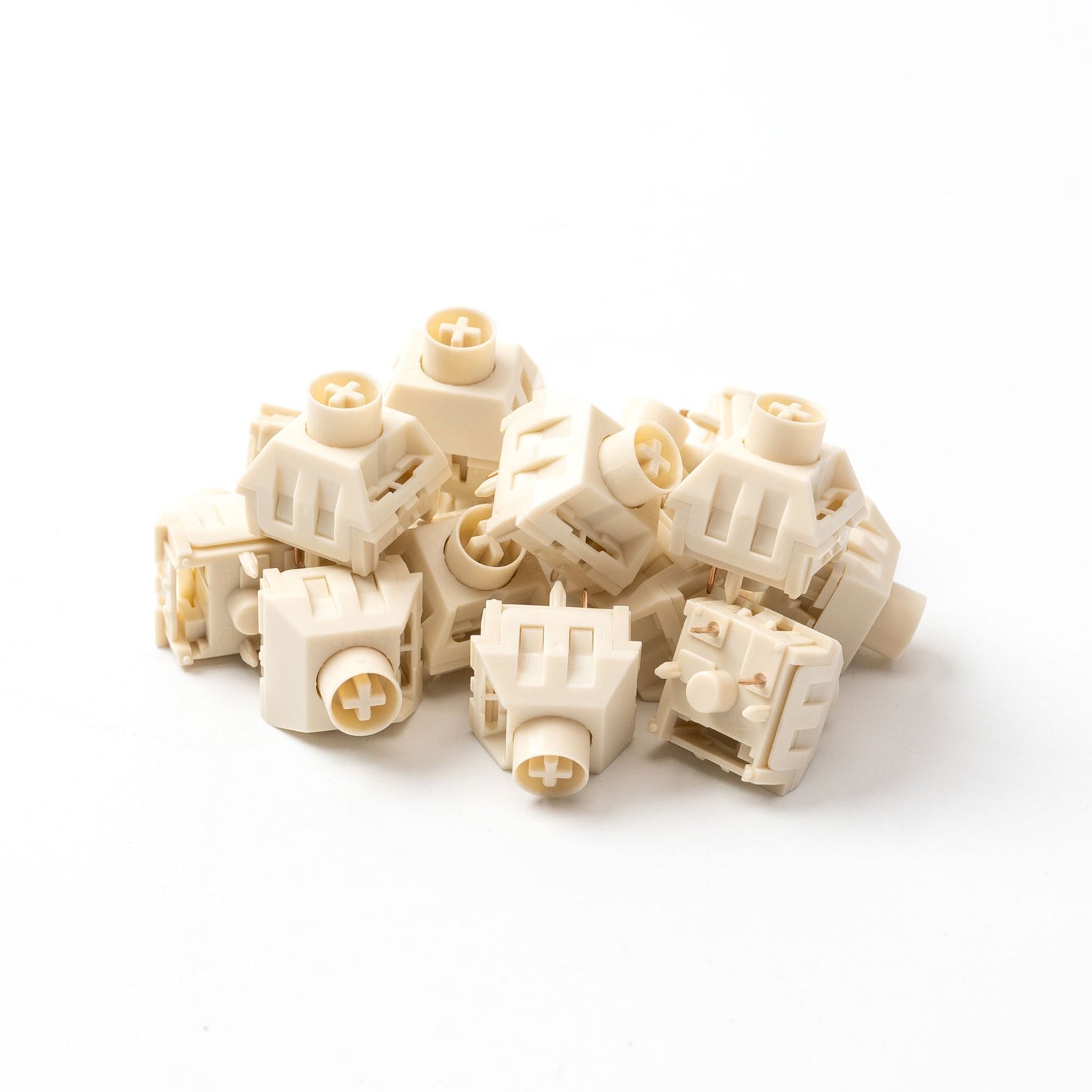

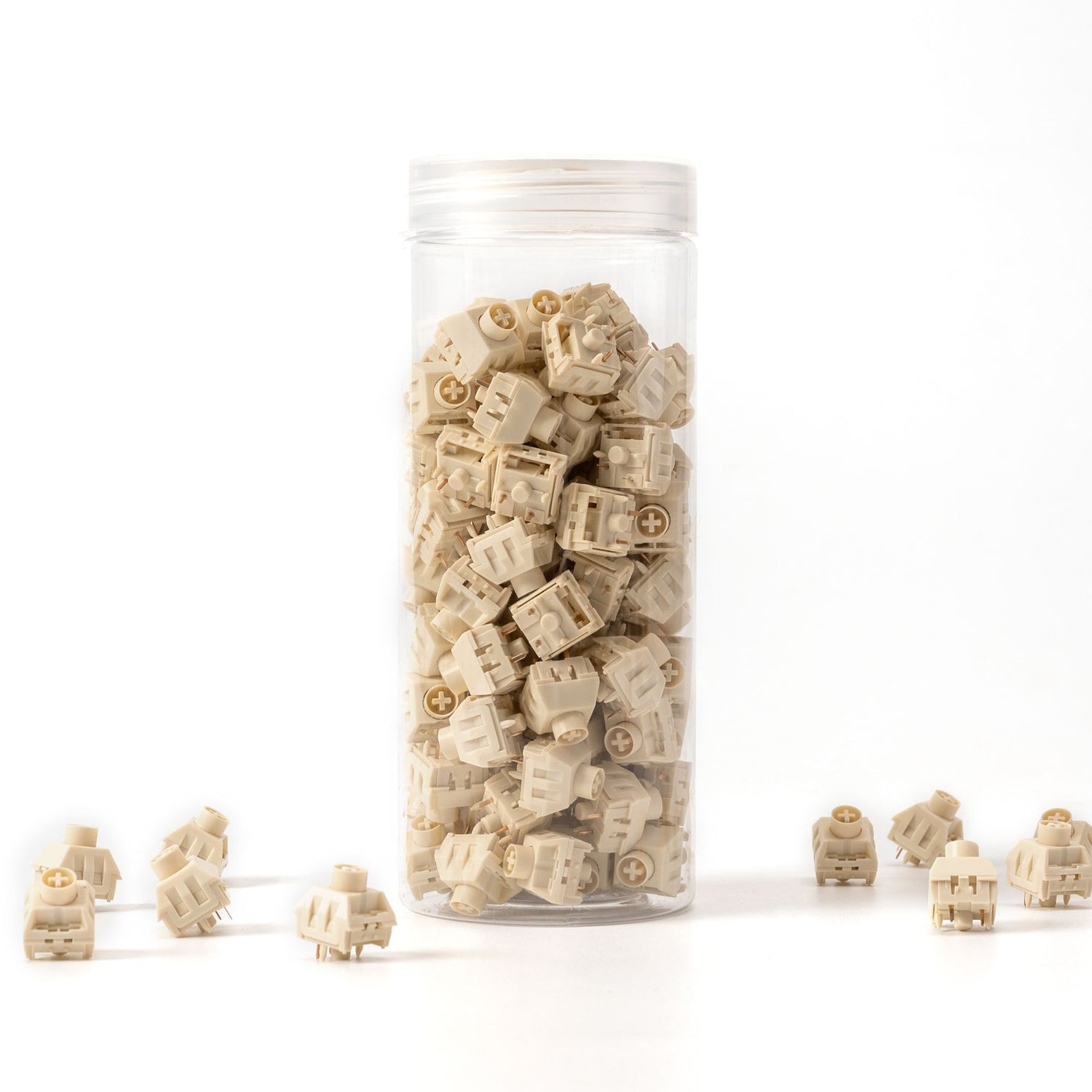

Name: Kailh Box Cream Pro Switch
Brand: Keychron
SKU: G173
Price: 38.0 EUR
Availability: OutOfStock

Brand New POM PRO Material

The Box Cream Pro Switch utilizes the special POM material newly developed by Kailh with improved POM wear resistance material. By reducing the switch’s friction coefficient, the POM switch’s unique clear sound is retained.

Factory Pre-Lubed

Compared to the older version (Box Cream), the Box Cream Pro Switch is factory pre-lubed. After many debugging testings of the lubricating oil ratios, we’ve reached a balance point that improves the entire POM switch body’s smoothness.

Long Spring

The Box Cream Pro Switch is equipped with a long spring to provide a strong rebound, delivering a unique and smooth fingertip feel.

Innovative “Box”
Structure

The innovative sealed “Box“ structure prevents dust and water from corrosion and provides extra protection for the contact plate and leaf.

5-Pin Stable Base

The 5-Pin structure increases stability and greatly reduces the wobble of the switch when it is pressed.

Product Structure

Specs

Type	Linear
Operation Force	45±10 gf
Pre-travel	1.7±0.4 mm
Return Force	≥15 gf
Total Travel	4.0±0.3 mm
Sound Level	Low
Operation Life	Up to 50M cycles
Suitable For	Gaming/office

Product Name	Box Cream Pro Switch
Stem	POM
Top Housing	POM
Bottom Housing	POM
Contact	Composite gold
Spring	Spring steel
Protecting Cover	Nylon
Slider	POM
Pins	5-Pin
Factory Pre-lubed	Yes
SMD LED Support	Yes

Compatible Keyboard:

Any K series (Gateron Mechanical Hot-Swappable or Keychron Mechanical Hot-Swappable versions only), K Pro series (Normal-profile versions only), C and C Pro series (Hot-Swappable versions only), V series, Q series and Q Pro series Keychron keyboards.
